Single mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper Compatible

CFOFC Communications Ltd.
Contact Now

Single mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper Compatible

Brand Name : CFOFC

Model Number : CFOFC-Bidi 1.25G SFP

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 30,000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Application : Telecommunications,FTTH FTTB FTTX Network,Network

Product name : Single mode BIDI SFP

Connector type : LC

Data Rate : 1.25G/s

Wavelength : 1490nm/1550nm

Transmission Distance : 80km

Contact Now

Single mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper Compatible



Description of Optical Module



Tx1490nm/Rx1550nm Single mode BIDI SFP 1.25G 80km are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40KM transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Specification of Optical Module



Data Rate
distance
wavelength
LD
PD
Connector
DDM
1.25G
20km
T1310/R1550
FP
PIN
LC/SC
Y/N
1.25G
120km
T1490/R1550
DFB
APD
LC
Y
1.25G
20km
T1550/R1310
DFB
FP
LC/SC
Y/N
2.5G
80km
T1550/R1490
DFB
APD
LC
Y
2.5G
20km
T1310/R1550
DFB
FP
LC/SC
Y/N
2.5G
20km
T1550/R1310
DFB
PIN
LC/SC
Y/N
2.5G
40km
T1490/R1550
DFB
PIN
LC/SC
Y/N
2.5G
40km
T1550/R1490
DFB
PIN
LC/SC
Y/N
1.25G
40km
T1550/R1310
DFB
PIN
LC/SC
Y/N
155M
20km
T1310/R1550
FP
PIN
LC/SC
Y/N
155M
20km
T1550/R1490
DFB
PIN
LC/SC
Y/N
1.25G
20km
T1490/R1310
DFB
PIN
LC/SC
Y/N
1.25G
40km
T1310/R1550
DFB
PIN
LC/SC
Y/N
1.25G
20km
T1310/R1490
FP
PIN
LC/SC
Y/N
2.5G
80km
T1490/R1550
DFB
APD
LC
Y
155M
20km
T1310/R1490
FP
PIN
LC/SC
Y/N
1.25G
80km
T1550/R1310
DFB
APD
LC
Y/N
155M
60km
T1550/R1310
DFB
PIN
LC/SC
Y/N
1.25G
40km
T1310/R1490
DFB
PIN
LC/SC
Y/N
1.25G
80km
T1490/R1550
DFB
PIN
LC
Y/N
155M
40km
T1490/R1310
DFB
PIN
LC/SC
Y/N
1.25G
120km
T1550/R1490
DFB
PIN
LC
Y
155M
120km
T1490/R1550
DFB
PIN
LC/SC
Y/N
1.25G
80km
T1310/R1550
DFB
APD
LC
Y/N
1.25G
80km
T1550/R1490
DFB
APD
LC
Y/N



Features of Optical Module


Data-rate of 1.25Gbps operation
1490/1550nm DFB laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C Extended : -20 to +85°C Industrial : -40 to +85°


Application of Optical Module



Gigabit Ethernet

Fiber Channel

Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems



Single mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper CompatibleSingle mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper CompatibleSingle mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper Compatible



The reason why Choose us

1. On time delivery

2. Factory outlet

3. Customization

4. Large product inventory with massive production line

5. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. How can I get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.

2. Can you offer free samples?
Yes. we can provide free sample, but you should bear the shipping cost. It will return after you place the order from us.

3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.

4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.

Product Tags:

1.25G bidi sfp single mode



bidi sfp single mode 80km



LC single mode bidi


Buy cheap Single mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper Compatible product

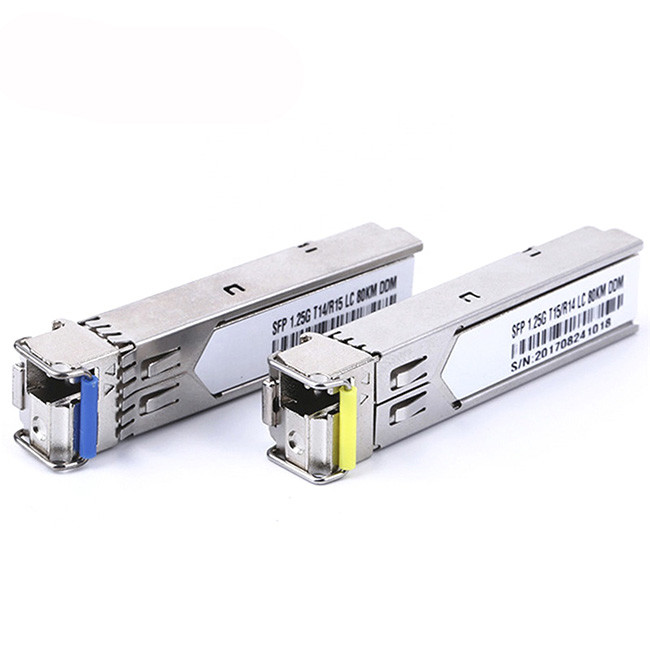

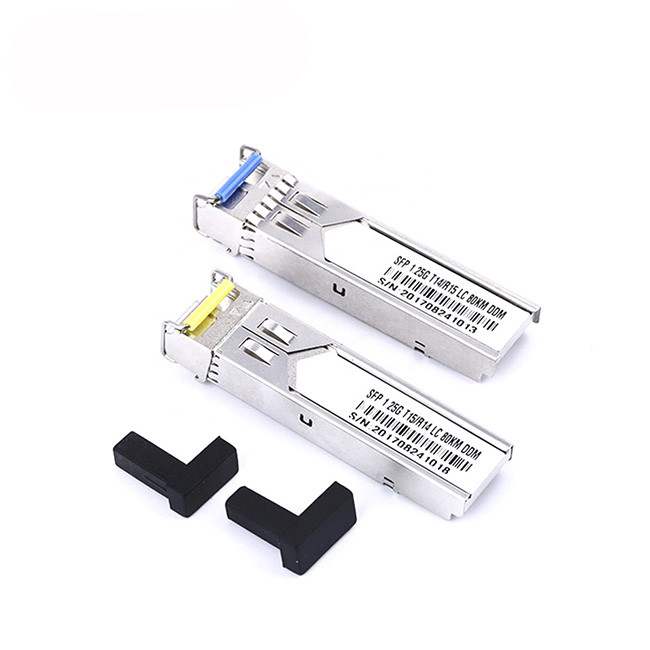

Single mode BIDI SFP 1.25G 80km Tx1490nm/Rx1550nm LC connector Cisco/Juniper Compatible Images
