Multimode AOC DAC Cable OM3 SC SFP Fiber Optic Loopback Test

Brand Name : CFOFC

Model Number : CFOFC-Testing applications

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 3,000,000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Application : Testing applications

Fiber Mode : Singlemode

Connector : SC

Insert- test : 500times, IL<0.5dB

Insertion loss : SM≤0.3dB

No. of Fiber : No. of Fiber: 2.

Contact Now

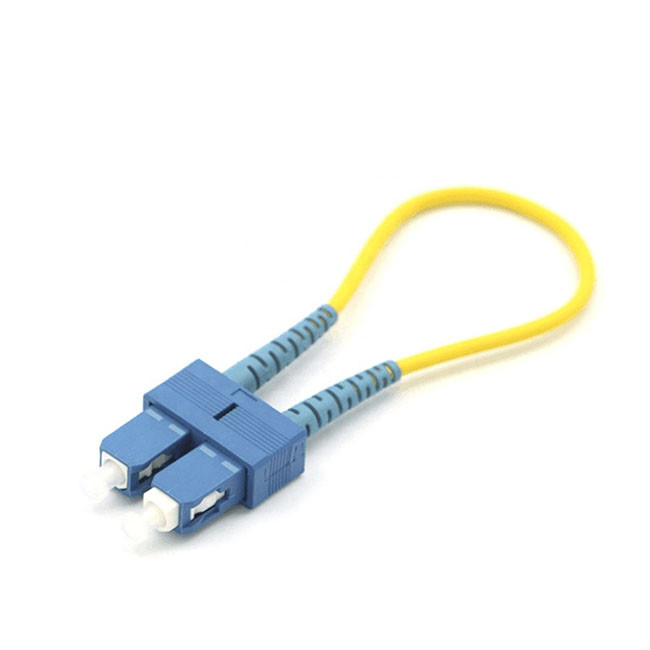

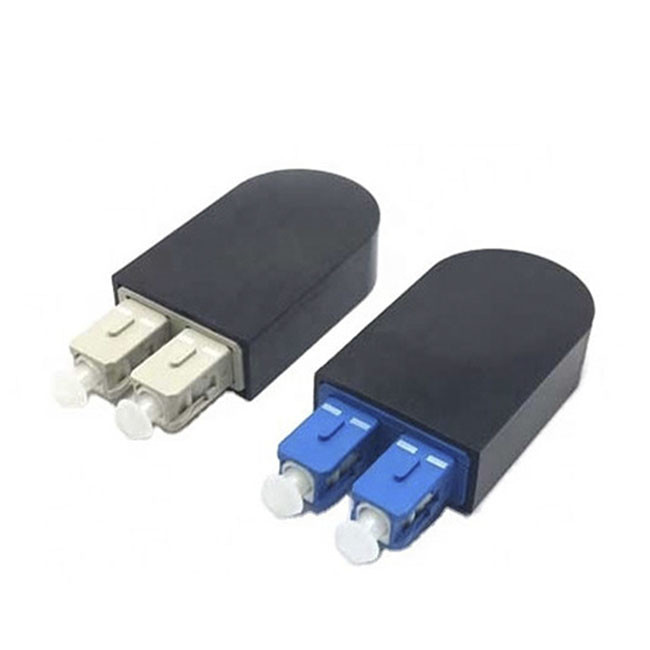

Multimode OM3 SC Loopback Modules SC SFP Loopback Test Cable



Description of Fiber Optic Loopback



Loopback used for testing the system or network system in the signal back, through the return signal, you can detect the network link in a variety of potential anomalies, this test is widely used to ensure the normal network link to provide An effective detection method. Fiber Optic Loopback Modules may also be used for the burn-in stage of boards and other equipment.​Loopback Modules incorprate two fiber optic connectors. One fiber optic connector is plugged into the output port, while the other fiber optic connector is plugged into the input port of the equipment.



Features of Fiber Optic Loopback



High quality ferrule

Various test equipment

Low insertion loss

Optical fiber communication system

High return loss



Application of Fiber Optic Loopback



Equipment interconnection

Device pig-tailling

Premise networks

Patch panel applications

Communications connections

LoopBack for network components testing



Specification of Fiber Optic Loopback



Type
Singlemode
Multimode
Insertion loss
PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB
PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
Return loss
UPC≥ 50dB APC ≥ 60dB
-
Repeatability
≤ 0.1db
Changeability
≤ 0.2dB
Working temperature
-40 to 8o Celsius
Durability
1000 times
Sustain tension
≥ 100N
Fiber
9/125um , 50/125um, 62.5/125um, OM3 etc
Diameter
0.9mm
Cores
duplex





Multimode AOC DAC Cable OM3 SC SFP Fiber Optic Loopback TestMultimode AOC DAC Cable OM3 SC SFP Fiber Optic Loopback TestMultimode AOC DAC Cable OM3 SC SFP Fiber Optic Loopback TestMultimode AOC DAC Cable OM3 SC SFP Fiber Optic Loopback Test

The reason why Choose us:



1. On time delivery

2. Factory outlet

3. Large product inventory with massive production line

4. Comprehensive quality control and management system

5. Support free samples



FAQ



1. Are you the Manufacturer ?

Yes. We are the manufacturer with 10 Years experience.



2. Can you accept OEM ?

Yes. OEM is available, including Logo, Package, Products.



3. What's your payment terms ?

We accept T/T, LC, Western Union.



4. Can you offer free samples ?

Yes. we can provide free sample, but you should bear the shipping cost. It will return after you place the order from us.
