0.9mm 2.0mm 3.0mm SC UPC Fiber optic connector
Description of SC APC Fiber optic connector
The optical fiber connector of SC is basically composed of dust cap, outer frame, white inner core, ceramic core, ceramic core tail handle, core spring, back seat (stop ring), crimping ring assembly (horn ring + small ring), tail sleeve and other parts. The outer frame, white inner core, ceramic insert core, ceramic insert core tail handle, insert core spring, back seat (stop ring) will not change size with the diameter of the applicable cable, and the crimped ring component (horn ring + small ring), tail sleeve will change size with the diameter of the applicable cable. In addition, in order to distinguish the connectors used in different core models or core models, the color of the outer frame, tail sleeve and duplex clip will be different.
Specifications of SC APC Fiber optic connector
| item | value |
| Model Number | SC APC Fiber optic connector |
| Type | Fiber Adapter & Connectors |
| Place of Origin | China |
| | Guangdong |
| Brand Name | CFOFC |
| Use | fttx |
| Warranty Time | 3 years |
| Network | None |
| Insertion Loss | 0.2dB(SM), 0.3dB(MM) |
| Durability | 0.1dB typical change,500 matings |
| Return Loss | PC≥45dB, UPC≥50dB,APC≥60dB |
| Operating Temperature | -40 to +75℃ |
| Color | Green |
| Interface | PC,UPC,APC |
| Material | PC |
Features of SC APC Fiber optic connector
1. Conforms to Telcordia GR-326-CORE standard
2. Low insertion loss, high echo attenuation, high stability
3. Good repeatability, good interchangeability
4. Standard metal parts are used
5. Ceramic core, PC, UPC and APC grinding
6. Can provide ordinary PVC,LSZH,OFNP,OFNR,TPU and other different colors, different skin materials
7. Can provide G657A,G652D and other different core fiber materials
Application of SC APC Fiber optic connector
Fiber optic patch cord products are widely used in: communication room, optical fiber to the home, local area network, optical fiber sensor, optical fiber communication system, optical fiber connection transmission equipment, national defense readiness, etc. It is suitable for cable television network, telecommunication network, computer fiber network and optical testing equipment. Subdivision is mainly applied in several aspects.
1. Optical fiber communication system
2. Optical fiber access network
3. Optical fiber data transmission
4. Optical fiber CATV
5. Local Area Network (LAN)
6. Test the equipment
7. Optical fiber sensor
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Customization
4. Quality guarantee
5. One to one special after-sales service
FAQ
1. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.
2. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
3. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
4. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
Product Tags:
|
|

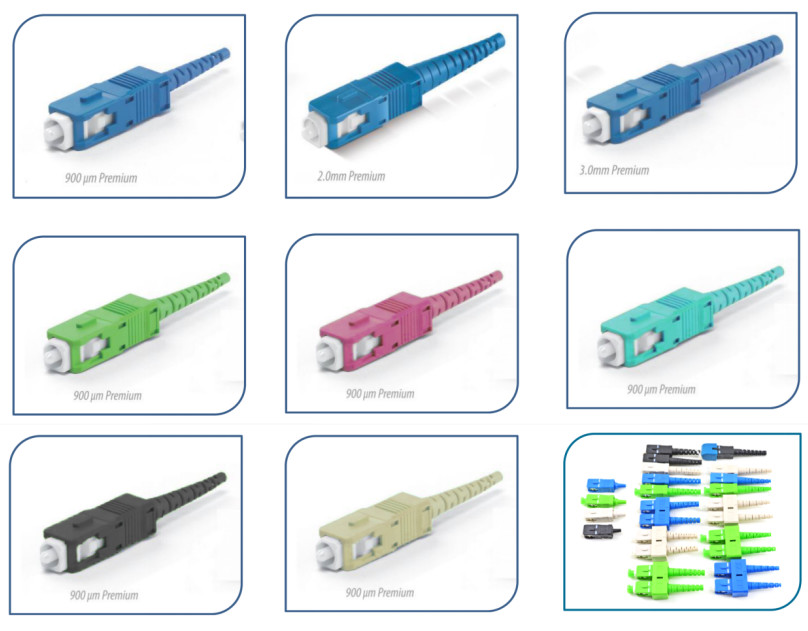

SC APC Fiber Optic Connector 0.9mm 2.0mm 3.0mm Images
|
